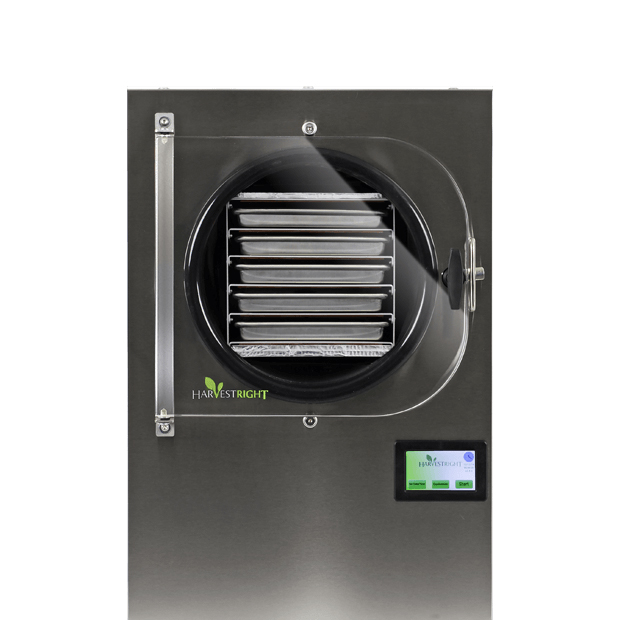

Patented technology keeps the product fresh, and preserves the potency, color, shape and nutrition of any organic material. Perfect for freeze drying herbs, oils, medicines, remedies, pharmaceuticals, and compounds.
- The freeze dryer has built in intelligence. It automatically and perfectly manages the freeze drying process
- The ideal vacuum pressure and drying temperature is maintained for each material and
- preserves freshness and potency
- 75 square feet of tray space
- Shelving unit holds 5 trays
- 3 liters of ice capacity
MAINTENANCE
Simply filter and replace oil (unless you upgraded to an oil free pump). It just takes a couple of minutes.
DIMENSIONS
- Overall product dimensions: 16.5” W x 18.5” D x 25” H
- Perfect for a countertop, cart or table.
- 5 trays
- 75 sq ft tray space
- 133 lbs
VACUUM PUMP
Each vacuum pump has been factory tested to guarantee 25 microns (25,400 Microns = 1 Inch of Hg) or better, and listed CFM performance.
CFM: 7.2
Motor: 3/4 HP, 1725 RPM
Voltage: Standard 115V 60Hz
Plug: US 110V
Intake Port: 3/4 JIC flare
Intake Port: 21 oz (680 cc)
Dimensions: 10 1/2” H x 16” D x 5 3/4” W
Weight: 35 lbs
SHIPPING INFO
- The small freeze dryer ships in one package with a total weight of 139 lbs.
- Item will be delivered to physical addresses, no PO boxes.
- One freeze dryer package: 26”W x 36”D x 41”H
