ACCESS ROSIN® DUAL PRESS
Two presses usually means two footprints and two operators. The DUAL puts twin 6×10" platens and four independent heat zones in one frame, so one operator can run two batches at two temperatures at once, without doubling floor space or headcount.

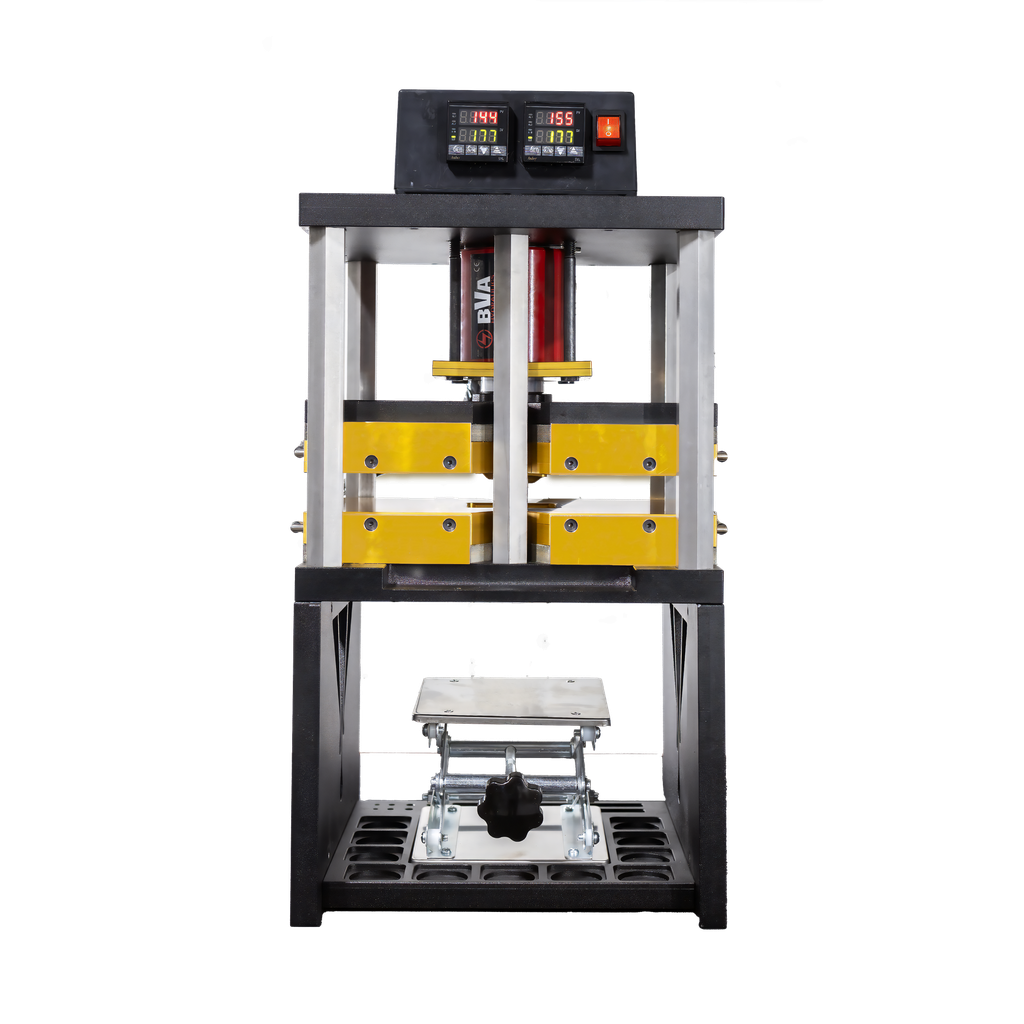

Twin 6×10″ platens, four independent heat zones, one frame: the DUAL, up close.
DUAL: Upcoming Event Grand Prize
The DUAL is a one-off system reserved as the grand prize for a forthcoming Access Rosin event series. It is not for sale and not part of the active press lineup.
Ask about the DUAL grand prize
Two Presses in One Footprint
Independent zones let you run different materials, grades, or temperatures side by side.
Dual-Zone Independence
Press washed material at 170°F on one platen and botanical material at 200°F on the other. The two zones don't share heat.
Two Batches at Once
Twin 6×10" platens, 25 tons each (50 tons combined), let one operator run two batches side by side.
4-Zone PID Control
Four independent fuzzy-logic PID controllers hold every quadrant on-temp.
Manual Hydraulic Control
Hydraulic control you can feel, with direct pressure feedback. Optional BVA P352 or P1000 pumps.
Seven Finishes
Black, Red, Blue, Gold, Green, Purple, and Polished Aluminum chassis options.
Built to Last
A powder-coated steel H-frame carries the load, while precision-milled 6061-T6 aluminum platens spread heat evenly across the plate so the whole pressing surface holds temperature.
Technical Specifications
| Configuration | Dual-plate parallel processing |
|---|---|
| Plate Dimensions | Two 6×10" (60 sq in each) |
| Total Force | 50 tons (100,000 lbs) combined, 25 tons per plate |
| Temperature Zones | 4 independent PID controllers |
| Temp Control | Fuzzy-logic PID control |
| Plate Material | Precision-milled 6061-T6 aluminum |
| Hydraulic Pump | Optional: BVA P352 or BVA P1000 |
| Dimensions | 42" W × 24" D × 48" H |
| Weight | 220 lbs |
| Power | 220V / 30A, dual phase |
| Warranty | 1-year (frame, plates, heating & electronics) |
Compare the DUAL with the FLUID, AIR & KWÄD →
Recommended Consumables
Off the heat, into the cylinder.
Cone plates and a central drain pull your extract off the hot plate the moment it flows, down through the Flow Control bag and into a front-mount collection cylinder seated against the plate. Less time on the heat, less surface open to the room.
One shop,
the whole line
Wash, press, dry, and resupply — every stage built and supported by the same Lake Forest team. Spec it as a system, not a pile of parts.
Build a System
The DUAL isn't for sale. The team behind it is.
The DUAL is the one-off grand prize for a coming Access Rosin event, but the AIR, FLUID, and KWÄD it's built alongside ship every day. Tell us how your shop runs and we'll spec the press that fits.
Same team, one shop in Lake Forest, California, from the wash vessel to the final press.
