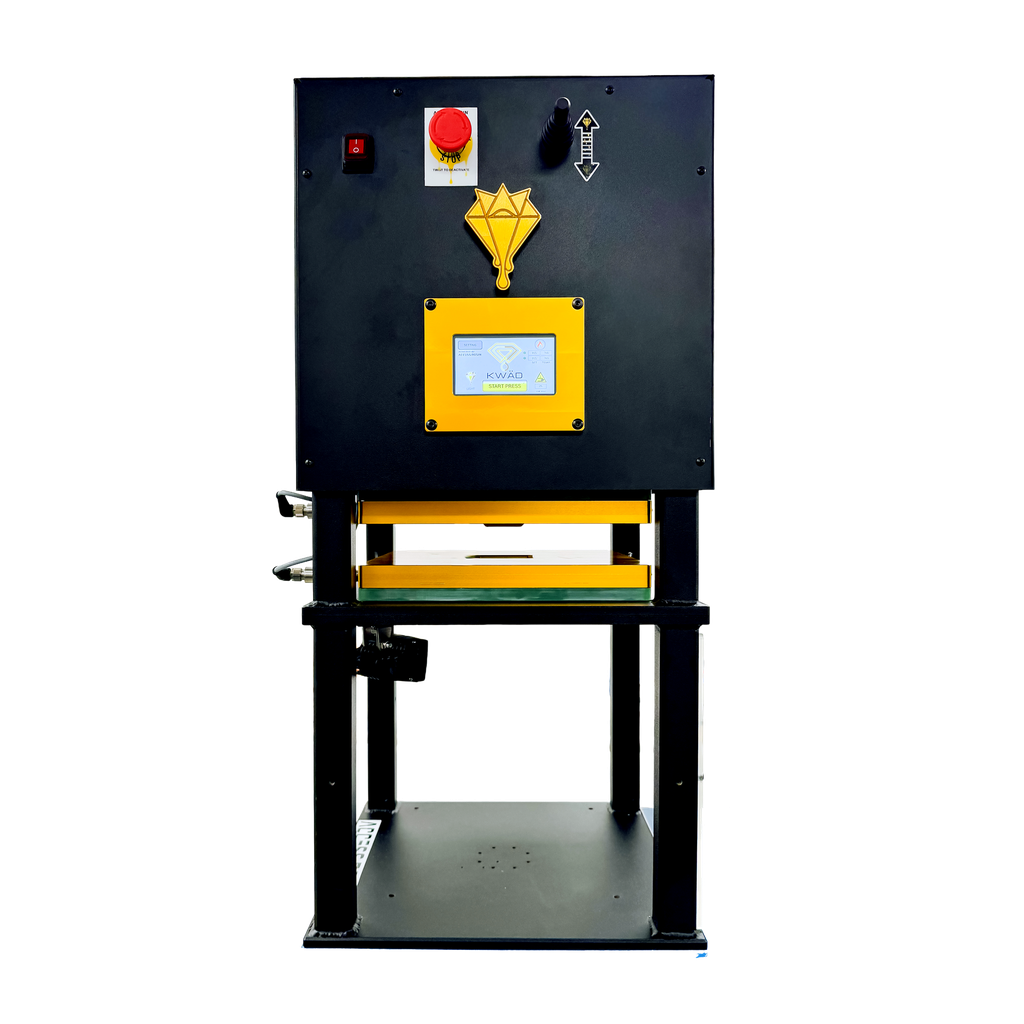

ACCESS ROSIN® KWÄD PRESS
Chasing volume means an operator babysitting the press all day, and results that shift with whoever's on shift. The KWÄD takes over: 100 tons of electric-hydraulic force run by F.C.T. software, with 20 saved recipes so the line presses the same way every cycle, no matter who's running it.
Mid-cycle on the KWÄD: 100 tons closing, rosin running straight into the jar. This is what repeatable volume looks like.
The flagship,
running
100g of hash pressed into rosin with Eli on The Rosin Machine: full production automation in action.
SET IT.
RUN IT. SCALE IT.
The KWÄD handles every press cycle without operator intervention.
PLC Control System
Dial in a full cycle once (pressure ramp, hold time, release) and save it as a named recipe on the touchscreen. Your best run becomes the run everyone gets, so training a new operator is picking a recipe, not learning a feel.
Data Logging
Every cycle logs timestamp, temperature, pressure, and duration to USB. When something's off you have the record to find out why, and when it's right you have the proof to repeat it.
Dual-Platen Heating
Each platen holds its own PID and hits temperature in under 4 minutes, so the line is producing sooner after startup. Auto-hold keeps both plates steady the whole run, so the first batch matches the last.
Auto-Cycle Mode
Queue several cycles and the press runs them on its own, freeing your operator to load, unload, and pack instead of standing on a lever. Timing stays identical batch to batch.
Safety Interlocks
Dual-hand operation, a light-curtain sensor, emergency stop, pressure relief, and over-temperature shutdown keep your crew and your machine protected on a 100-ton press. Peace of mind on the floor and cleaner passes with the inspector.
Industrial Frame
A welded steel H-frame with powder-coat finish is rated for continuous commercial production, so it takes daily industrial duty without flexing or fatiguing. Leveling feet and an optional caster kit let you place it where the line needs it.
Scaling to industrial volume
LEEF LABS partnered with Access Rosin to scale their solvent-less operation. See how recipe storage and auto-cycle mode handle industrial volume.
SPECIFICATIONS
| Max Force | 100 tons |
|---|---|
| Hydraulic | Electric hydraulic (double-acting), up to 10,000 PSI hydraulic capacity |
| Plate Pressure | 0–2,500 psi at the bag (effective pressing area dependent; ≈1,400 psi across the full 12×12″ platen) |
| Heat Platens | Dual 12" × 12" heated platens |
| Collection Cavity | 5.25" W × 17" D × 12" H · post-melt separation |
| Temp Range | 32°F – 450°F (0°C – 232°C) |
| Temp Control | Dual-zone PID with fuzzy logic |
| Automation | F.C.T. software · touchscreen · 8 stages + finish stage · 20 recipe storage |
| Dimensions | 15" L × 15" W × 25" H |
| Weight | 285 lbs |
| Power | Press 110–120V / 60 Hz / 13 A · Pump 110–120V / 60 Hz / 9 A (20 A circuits recommended) |
| Safety | Enclosed design with emergency stop (E-Stop) |
| Warranty | 1-year (frame, plates, heating & electronics) |
Compare the lineup
Post-melt,
separated
Post-melt separation on a 100g press: the same collection physics at the heart of the KWÄD.
KWÄD Configurator
KWÄD Configurator
Ships in 2–3 WeeksRecommended Consumables
Off the heat, into the cylinder.
Cone plates and a central drain pull your extract off the hot plate the moment it flows, down through the Flow Control bag and into a front-mount collection cylinder seated against the plate. Less time on the heat, less surface open to the room.
One shop,
the whole line
Wash, press, dry, and resupply — every stage built and supported by the same Lake Forest team. Spec it as a system, not a pile of parts.
Build a System
The line runs itself. You run the shop.
Load the chamber, tap your saved recipe on the touchscreen, and walk away to manage the shop. 100 tons of hydraulic force runs the cycle: pressure ramp, hold, release, logged to USB, identical whether your best tech or a new hire pressed the button.
Built in California for facilities that press every day, by the same team that builds your wash line, one shop in Lake Forest. Talk to an engineer and we'll spec it to your volume. From the Trap Cage to the KWÄD, every press shares the same Lake Forest DNA. See the Trap Cage unveiling →
