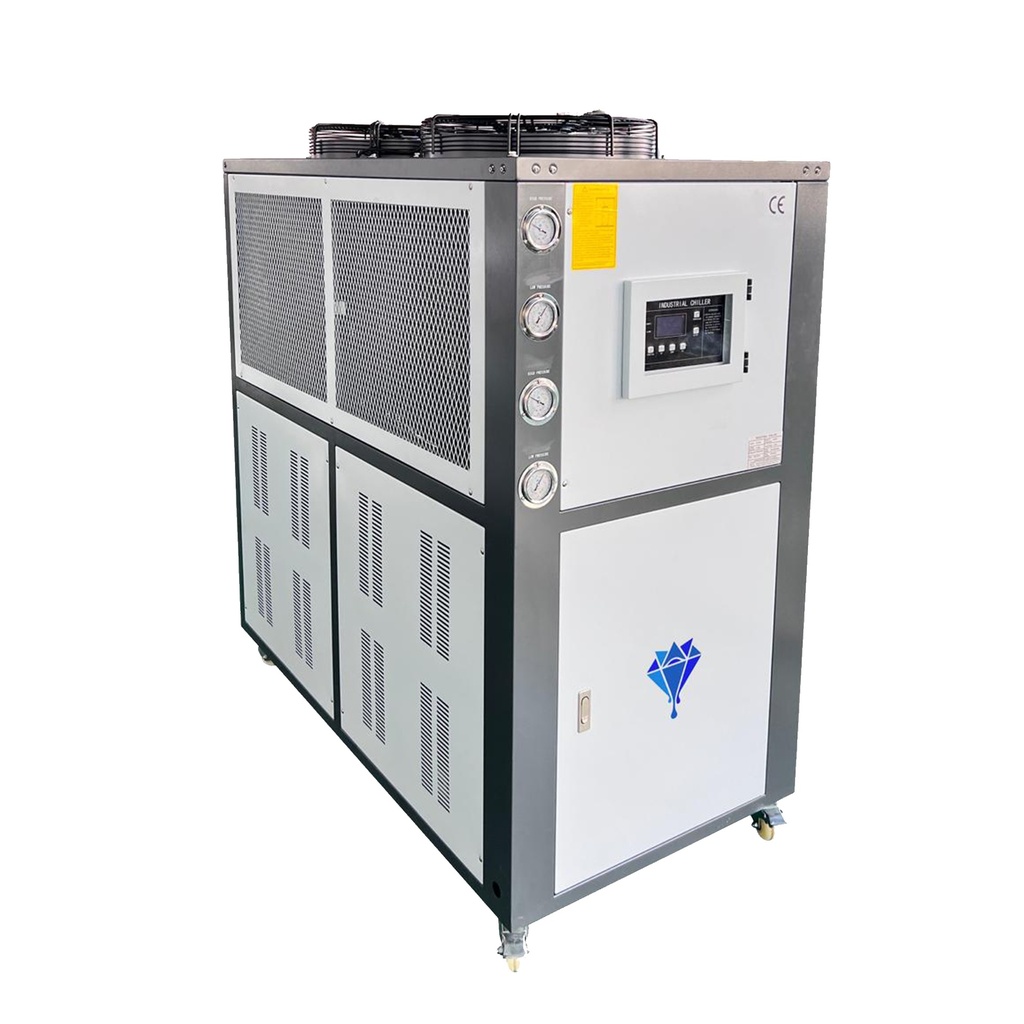

AR - Air Cool Chillers
Created with the highest-quality craftsmanship, our Chiller 8-10HP delivers unsurpassed refrigeration power. This model is specifically designed to accommodate a 3P 60 Hz power supply, ensuring superior precision cooling of your system with its glycol chiller. Experience the luxury of a superior cooling solution with this premium product.
Documents
Technical Specifications
Precision-engineered for professional extraction
Built Different. Built Better.
Made in the USA
Designed, engineered and assembled in Las Vegas, Nevada with the highest quality components.
Precision Engineering
Every press is calibrated and tested to deliver consistent, repeatable results batch after batch.
Lifetime Warranty
We stand behind our machines. Full lifetime coverage on all structural components and heating elements.
Dedicated Support
Our extraction experts are available 7 days a week to help you get the most from your investment.
Created with the highest-quality craftsmanship, our Chiller 8-10HP delivers unsurpassed refrigeration power. This model is specifically designed to accommodate a 3P 60 Hz power supply, ensuring superior precision cooling of your system with its glycol chiller. Experience the luxury of a superior cooling solution with this premium product.
Specifications
| Style | 8HP or 15HP or 20HP |
| KCAL/H | 26935, 14276 |
| Input Power | 50 amps, 40 amps |
| Power Supply | 220V 3PH 60HZ |
| Refrigerant Type | R407C |
| Refrigerant Type of Control | Capillary, Expansion Valve |
| Compressor Type | Hermetic Scroll |
| Compressor Power | 21 amps, 14 amps |
| Condenser Type | Finned Copper Tube + Low Noise Outer Rotor Fan |
| Cooling Air Flow | 8000, 10,000 |
| Evaporator Type | Plate Heat Exchanger Without Tank, Water Tank With Coil |
| Evaporator Chilled Fluid Flow | 4.2, 5.37 |
| Evaporator Inlet/Outlet | 1-1/2" |
| Pump Power | 5 amps, 2.5 amps |
| Pump Lift (ft) | 85ft |
| Weight | 574lbs |
| Weight | 717lbs |
| Dimensions | 4'1" x 2'4" x 4'6", 5' x 2.5' x 5' |
