The AIR Series offers two premium pneumatic extraction systems designed for consistent, high-yield solventless resin production:

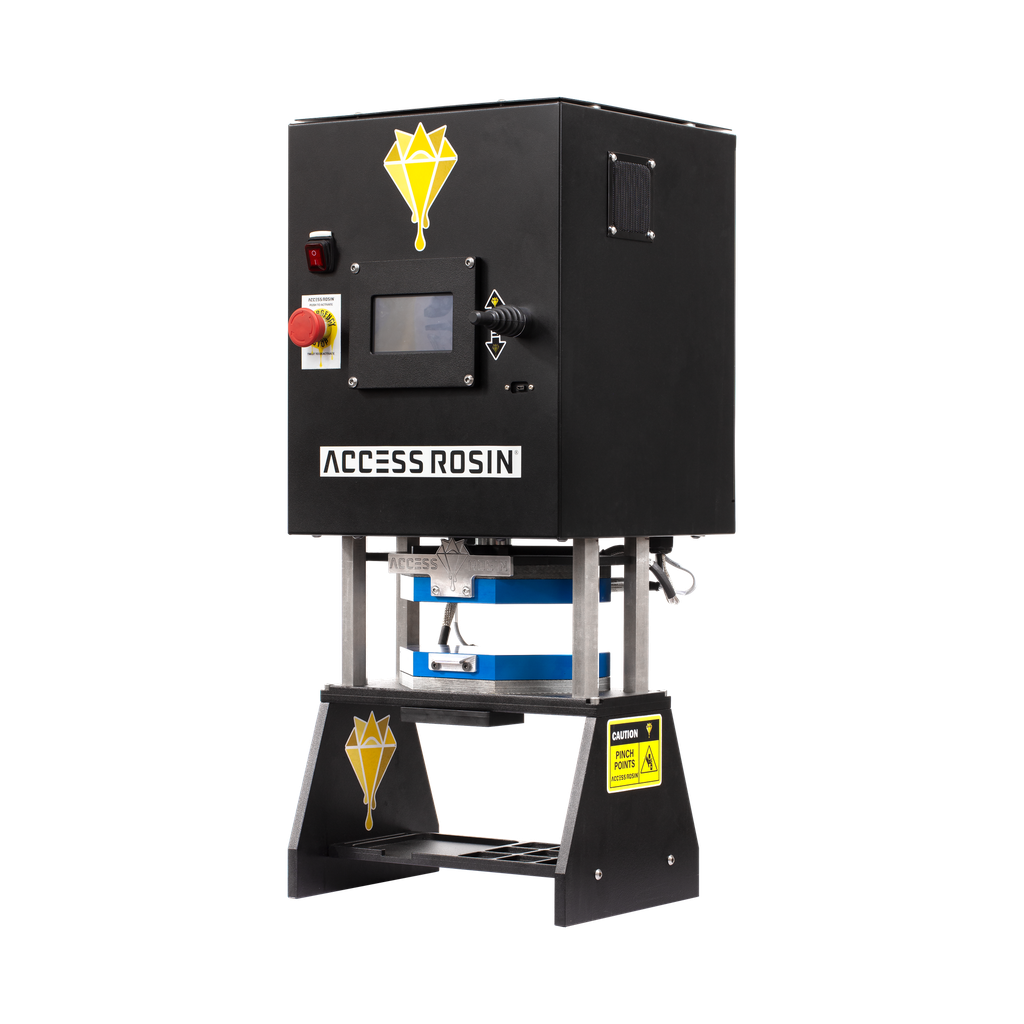

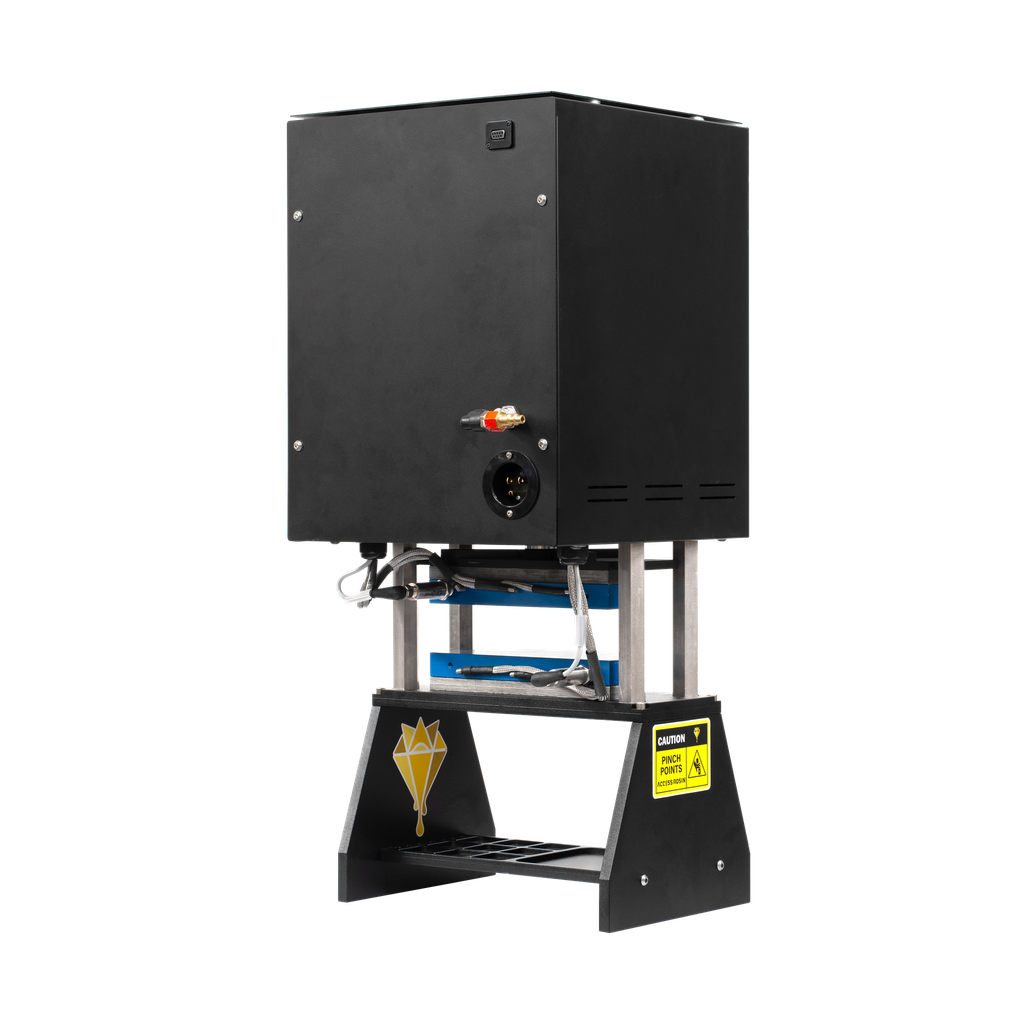

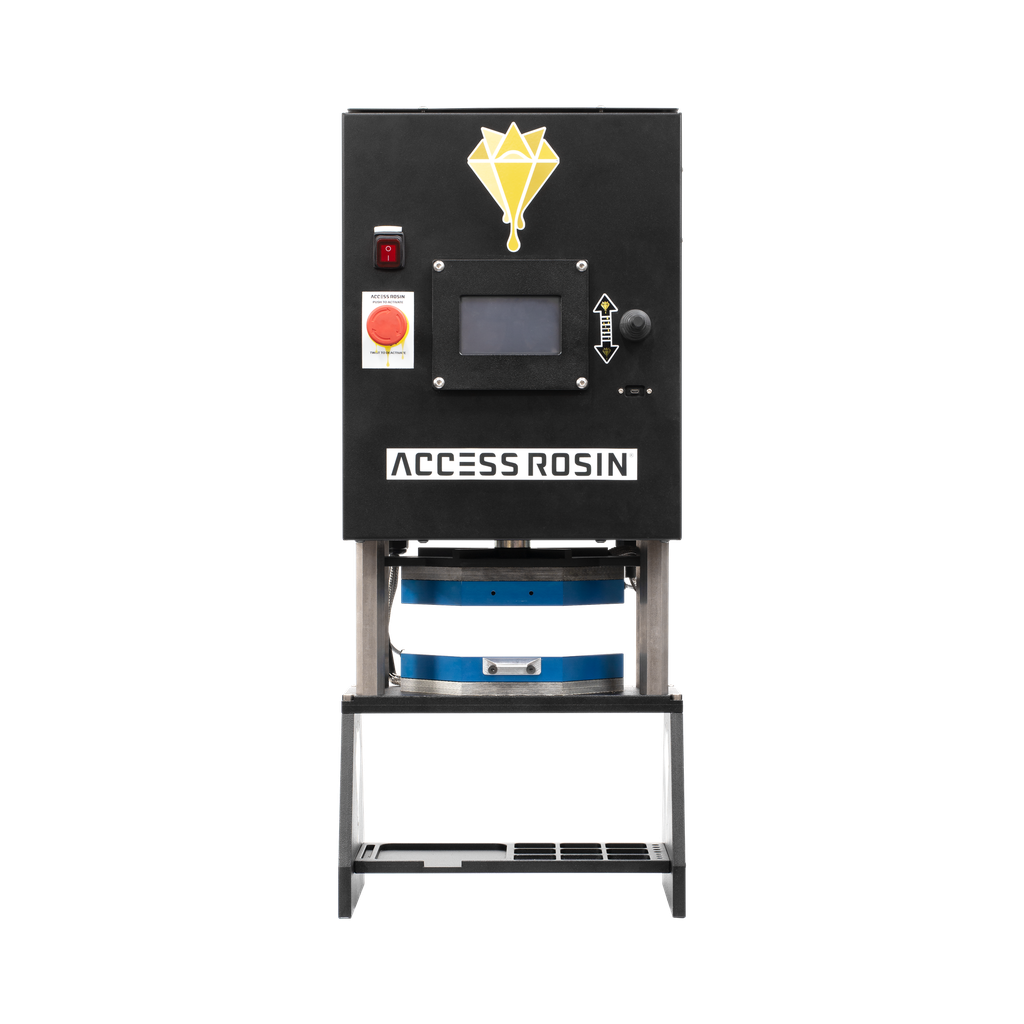

AIR (8-Ton Model)
An American-made CNC-milled steel frame with optional semi-gloss black powder coat and anodized plate finishes. Delivers 8 tons of force at 140 psi across a 34 in² material surface area ( up to 20" in² Resin / Rosin Bag). Automated 2–6 minute cycles are controlled via a 4.5″ high-resolution touchscreen running Access Rosin’s FCT software, storing up to 20 custom recipes and regulating temperature and pressure to ±1 psi. Ideal for small-batch craft producers and GMP environments.
Key Features
Force Capacity: 8 tons (AIR) at 140 psi
Material Surface Area: 46 in² (AIR)
CNC-milled steel frame with 2-year weld warranty
Digital pressure & temperature control (0–1500 psi; ±1 psi)
4.5″ touchscreen UI with 20 programmable recipe slots
6″ bore, 2″ stroke, 4-stage pneumatic cylinder
Rapid cycle: 2–6 minutes per press
Ready & easy-clean platens
Optional semi-gloss black powder coat & anodized plate finishes
Access Rosin® F.C.T Software driven S3AIR Rosin Press | 8-ton pneumatic | 34 in² heated platens | 4.5″ touchscreen | 20 recipes | 110–120 VAC, 60 Hz, 9 A | 6″ bore, 2″ stroke, 4-stage cylinder | CNC-milled steel frame | Made in USA
| 1 Day | $ 85.71 |
Access Rosin
Access Rosin is a manufacture and distributor of proprietary and innovative turn-key solvent-less solutions. Offering complete systems designed to streamline the solvent-less separation process at scale.
We OFFER
100% Money Back
Guarantee
100% Secured
Payment
30-Day Return
Policy
Specifications
| Power | 110v/120v 1P 60hz |
| Input | 15A Output 3.5 |
| XL Heat Plate | Rectangle 9" x 5.4" |
| Cylinder | 12-35 Ton |
| PID | Dual Plate Controllers |
| Thermocouple | K-Type |
| Switch | On/Off |
| Legs | 6" |
| Size | 12" (l) x 16" (w) x 32" (h) |
| Weight | 75lbs |
