Smart Agitation System – 85 Gallon PRO+

Automated Solventless Extraction System with Dual Ice Water Storage Tanks

Model: Smart Agitator 85G PRO+

Product Overview

The Smart Agitation System 85 Gallon PRO+ is a fully integrated, industrial-grade cold water extraction system designed for medium-scale solventless hash production. This advanced model includes dual 400-gallon iced water storage tanks with closed-loop recirculation, dual plate heat exchangers, and the 85-gallon Smart Agitator vessel as its core processing unit.

Built for efficiency, temperature stability, and repeatable results, the PRO+ configuration reduces labor, maintains optimal processing conditions, and enhances resin separation. It’s ideal for commercial operators scaling up output while maintaining award-winning quality.

✅ Key Features

• 85 Gallon Agitation Vessel (Working Volume):
  Designed for optimal trichome separation with servo-driven paddle agitation and planetary gear reduction for torque stability and gentle mixing.
• Dual 400-Gallon Iced Water Tanks:
  Enables up to 800 gallons of chilled water on standby. Facilitates continuous water cycling between batches without temperature loss or downtime.
• Dual Plate Heat Exchangers (10m² & 5m²):
  Closed-loop chilling system ensures rapid thermal recovery and ice-less performance, supporting multiple consecutive washes.
• Automated Process Control:
  Includes programmable logic control for fill, agitation, settle, recirculate, drain, and batch removal—all accessible from an integrated HMI touchscreen.
• Quick Batch Removal with CIP (Clean-in-Place):
  Enhances hygiene, reduces cleaning time, and improves processing throughput. Perfect for facilities requiring strict cGMP or GMP adherence.
• Advanced Tapered Paddle Design:
  Draws top material downwards, promoting efficient trichome separation while minimizing agitation damage. Resin gently collects under the false bottom spherical filter plate.
• 2” Gravity Drain Valve:
  Maximizes delicacy and efficiency during resin discharge, preserving the integrity of high-grade hash.
• Fully GMP-Compliant Construction:
  Fabricated using 316L stainless steel with TIG-welded seams and polyurethane insulation. All wetted surfaces are food/pharma grade and CIP-compatible.

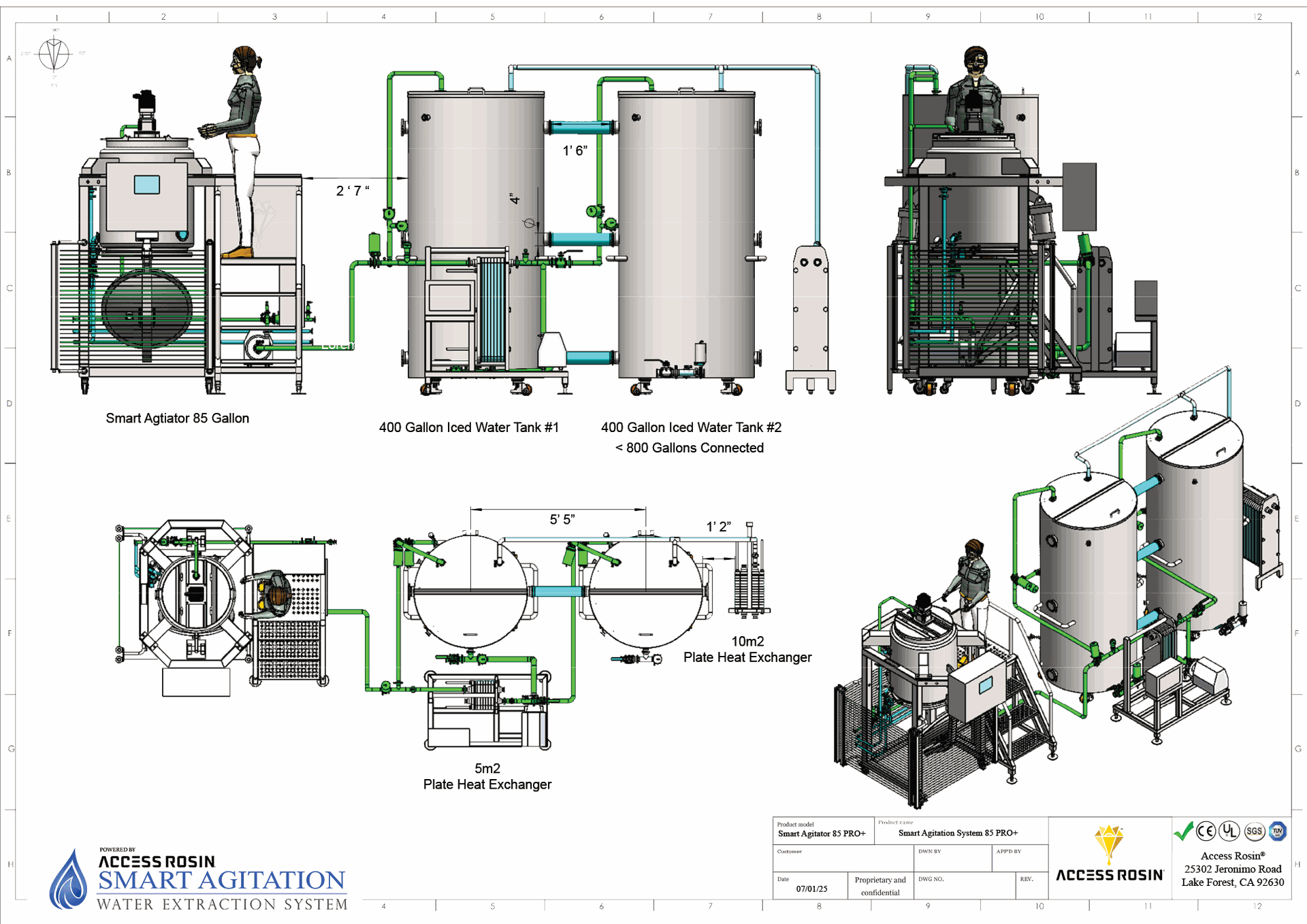

📐 System Components & Layout (As shown in diagram – page 1 of drawing set)

• Smart Agitator 85 Gallon Unit: Mounted platform with operator step for ergonomic access
• (2x) 400-Gallon Iced Water Storage Tanks: Connected via process lines with flow control
• (2x) Plate Heat Exchangers: 5m² and 10m² for rapid chilling and ice-less operation
• Recirculation & Fill Lines: Loop system supports batch-after-batch performance
• False Bottom Filter Plate: Built-in to separate resin during agitation and settling
• Compact Footprint: System layout optimized for mid-size labs and facility flow planningSmart Agiator 85g + Ice…

⚙️ Technical Specifications

🏭 Applications

• Ice Water Hash (Fresh Frozen or Cured Material)
• Solventless Resin Collection & Separation
• Mid-Scale Licensed Extraction Facilities
• cGMP/GMP-Compliant Production Labs
• Co-Manufacturing, White Labeling, and R&D

📦 Included in the PRO+ Package

• Smart Agitator 85 Gallon Vessel (Platform-Mounted)
• (2) 400-Gallon Iced Water Tanks with Control Plumbing
• (2) Plate Heat Exchangers (10m² and 5m²)
• Integrated Recirculation and Drain Lines
• Optional Filter Screens for Recirculation Mode
• HMI Touchscreen Automation Controller
• Full Commissioning & SOPs by Access Rosin

🔒 Why Choose the PRO+ System

The 85 Gallon Smart Agitation System PRO+ bridges the gap between artisan quality and commercial throughput. With dual chilling tanks, closed-loop automation, and full GMP-ready construction, it offers unmatched repeatability, reduced labor costs, and consistent yields.

Engineered, assembled, and supported by Access Rosin® – a leader in solventless extraction equipment.
